- Figure 1 – Wall Interface
Purpose:
This interface is used for showing, creating, modifying, and deleting *RIGIDWALL cards in LS-DYNA. The main advantage of this interface is the ability to graphically view the various rigidwall definitions with the flexibility of positioning them using translate, rotate, and reflect functions.
Controls:
Show – Show existing *RIGIDWALL entities
Modify – Modify existing *RIGIDWALL entities- Create – Create new *RIGIDWALLN entities
- Delete – Delete existing *RIGIDWALL entities
For Show, Modify, and Delete, the Entity Operation Interface is displayed in the secondary controls area.
- Geometry – Set geometry option (bottom panel options shown below)
- Cylind – Set geometry for cylinder
- Radius: Enter cylinder radius
- Length: Enter cylinder length
- Flat – Set geometry for flat
- Flat Length: Enter flat length
- Flat Width: Enter flat width
- Node X: Pick or ender ID of node at y-coordinate of head of edge vector l
- Node Y: Pick or ender ID of node at x-coordinate of head of edge vector l
- Node Z: Pick or ender ID of node at z-coordinate of head of edge vector l
- Prism – Set geometry for prism
- Pri_L: Enter prism length
- Pri_W: Enter prism width
- Pri_H: Enter prism height
- Node X: Pick or ender ID of node at y-coordinate of head of edge vector l
- Node Y: Pick or ender ID of node at x-coordinate of head of edge vector l
- Node Z: Pick or ender ID of node at z-coordinate of head of edge vector l
- Sphere – Set geometry for sphere
- Radius: Enter sphere radius
- Planar – Set planar option (bottom panel options shown below)
Finite – Set planar for finite
Forces – Set planar for forces- Moving – Set planar for moving
- Mass: Total mass of stonewall
- VO: Initial velocity of stonewall in direction of defining vector, n
- Ortho – Set planar for ortho
- Label: Set current entity label type
- Display Node Set – Display Node Set
Select all *RIGIDWALL
Deselect all *RIGIDWALL
Reverse selection *RIGIDWALL
Select all entities within the selected range
Apply entries for creation/modification
Cancel this modification or selection
Exit *RIGIDWALL data interface
- Click item from list to select

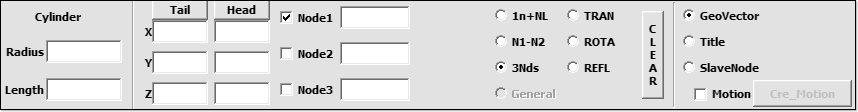

For Create: GeoVector, the panel in Figure 2 is shown in the secondary controls area. Embedded in middle portion of this panel is the Vector Operation Interface.
- Figure 2 – Create: GeoVector
For Create: Title, the panel in Figure 3 is shown in the secondary controls area.
-
- Figure 2 – Create: GeoVector
For Create: SlaveNode, the General Selection Interface is made available in the secondary controls area. Follow the link for a detailed description.
