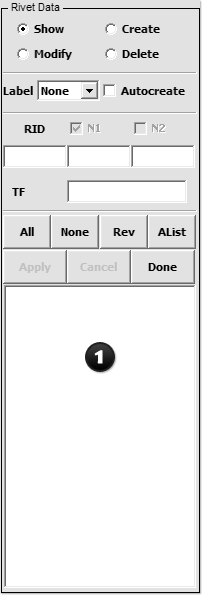

- Figure 1 – Rivet Interface
Purpose:
This interface is used for showing, creating, modifying, and deleting *CONSTRAINED_RIVET cards in LS-DYNA.
Controls:
Show – Show existing *CONSTRAINED_ RIVET entities
Create – Create new *CONSTRAINED_ RIVET entities- Modify – Modify existing *CONSTRAINED_ RIVET entities
- Delete – Delete existing *CONSTRAINED_ RIVET entities
For Show, Modify, and Delete, the Entity Operation Interface is displayed in the secondary controls area.
- Label: Select label type
Autocreate – Auto create rivet
- RID: Enter Rivet ID (Optional)
- N1 – Pick/Enter node ID 1
N2 – Pick/Enter node ID 2- TF: Enter failure time for nodal constraint set
Select all *CONSTRAINED_ RIVET entities
Deselect all *CONSTRAINED_ RIVET entities
Reverse selection
Select all entities within the selected range
Apply entries for creation/modification or selections for deletion
Cancel this modification or selection
Exit Constrained Rivet Data interface
- Click item from list to select
