Page 1: FComp (Fringe Component)

Home » Knowledge Base » LS-Prepost » Pages » Page1 » Page 1: FComp (Fringe Component)

  • fcomp panel

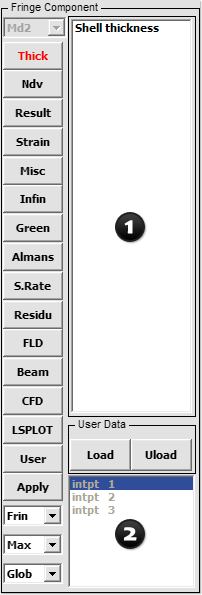

  • Figure 1 – FComp Interface

Purpose:

The FComp interface is used to display fringe component data on the model. It allows the selection of various scalar quantities like strains and stresses that can be fringed.

For shells and beams, such data is stored for different integration points through their thicknesses and cross sections respectively. Upon selecting a component to be fringed, further selection of data at a particular integration point can be made using a simple selection widget with options (Low/Mid/Upp/Max/Ave/Min/IPt/BPt).

By default LS-PrePost will fringe the maximum of all integration point data available. Stresses and strains are generally in the global coordinate system (GCS is set by default). This can be changed to Local where the data to be fringed will be made available in element local coordinate system.

User data can be loaded using the User button and fringed. This can be from external third party software or element and nodal results output from the Output Interface on Page 1.

Controls:

  • Model selection drop down menu: For use when multiple models are loaded (Md1/Md2/Md3/etc…)

  • Fringe Component selection menu (1)

Thick

 Global Stress/Strain components

Ndv

 Nodal Displacement/Velocity Contour

Result

 Stress resultant components

Strain

 Logarithmic strain components

Misc

 Pressure, Temperature, Thickness, etc.

Infin

 Infinitesimal Strains

Green

 Green-St. Venant Strains

Almans

 Almansi Strain

S.Rate

 Strain rates

Residu

 Residual elastic strains

FLD

 FLD strain components

Beam

 Beam fringe components

CFD

 Navier-Stokes components

LSPlot

 New database fringe components

User

 User defined fringe components

Apply

 Collect fringe data

  • Fringe: Choose fringe method (Frin/Isos/Lcon/Fiso/XFrn/FMes)
  • Integration: Select desired integration point (Low/Mid/Upp/Max/Ave/Min/IPt/BPt)
  • Integration Point selection menu (2)
  • CS: Choose Global or Local Coordinate System (Element’s Local CS)
