Sliding mesh is a technique that prevents excessive re-meshing in problems that involve rotating parts and the ICFD solver’s capabilities have been extended in order to make the solve of such applications possible. This example features an internal flow application of a centrifugal blood pump.

Keywords

*KEYWORD
*TITLE
*DATABASE_BINARY_D3PLOT
*DEFINE_CURVE_TITLE
*ICFD_BOUNDARY_NONSLIP
*ICFD_BOUNDARY_PERIODIC
*ICFD_BOUNDARY_PRESCRIBED_PRE
*ICFD_BOUNDARY_PRESCRIBED_VEL
*ICFD_CONTROL_IMPOSED_MOVE
*ICFD_CONTROL_MESH
*ICFD_CONTROL_OUTPUT
*ICFD_CONTROL_TAVERAGE
*ICFD_CONTROL_TIME
*ICFD_CONTROL_TURBULENCE
*ICFD_DATABASE_DRAG
*ICFD_DATABASE_FLUX
*ICFD_MAT
*ICFD_PART
*ICFD_PART_VOL
*ICFD_SECTION
*INCLUDE
*MESH_BL
*MESH_SIZE_SHAPE
*MESH_SURFACE_ELEMENT
*MESH_SURFACE_NODE
*MESH_VOLUME
*PART
*SECTION_SHELL
*END

Reduced Input

$-----------------------------------------------------------------------------
$
$ Example provided by Peggy and Iñaki (LST-Ansys)
$
$
$X------------------------------------------------------------------------------
$X
$X 1. Run file as is.
$X    Requires LS-DYNA MPP R12.0.0 (or higher) with double precision
$X
$X------------------------------------------------------------------------------
$# UNITS: (S.I)
$X------------------------------------------------------------------------------
$X
*KEYWORD
*INCLUDE
mesh.k
*PARAMETER
$--- Fluid
$
R  v_inlet    0.3638
Rrho_fluid    1035.0
R mu_fluid    0.0035
R dt_fluid    1.0e-5
R   turb_I      0.07
$
$---- Rotor
$
R    omega    366.52
$
$ ----------------- Control General --------------------------------------------
*ICFD_CONTROL_OUTPUT
$#    msgl
         4
*ICFD_CONTROL_TURBULENCE
         3
*ICFD_CONTROL_MESH
1.2
*ICFD_CONTROL_TIME
$#     ttm        dt       cfl    lcidsf     dtmin     dtmax    dtinit    tdeath
   0.34288         0       1.0         0       0.0       0.0       0.0       0.0
$ ----------------- Control Sliding --------------------------------------------
*ICFD_BOUNDARY_PERIODIC
4,3,5,
*ICFD_CONTROL_IMPOSED_MOVE
15
,,,100
*ICFD_CONTROL_IMPOSED_MOVE
5
,,,100
*ICFD_CONTROL_IMPOSED_MOVE
6
,,,100
$ ----------------- Parts and Boundary conditions-------------------------------
*ICFD_BOUNDARY_NONSLIP
$#     pid
         3
         6
*ICFD_BOUNDARY_PRESCRIBED_VEL
$#     pid       dof       vad      lcid        sf       vid     death     birth
         1         4         1        20       1.0         01.00000E28       0.0
*ICFD_BOUNDARY_PRESCRIBED_PRE
$#     pid      lcid        sf     death     birth
         2         2       1.01.00000E28       0.0
*ICFD_MAT
$#     mid       flg        ro       vis        st
         1         1&rho_fluid &mu_fluid       0.0
*ICFD_PART_TITLE
inlet
$#     pid     secid       mid
         1         1         1
*ICFD_PART_TITLE
outle
$#     pid     secid       mid
         2         1         1
*ICFD_PART_TITLE
rotor
$#     pid     secid       mid
         6         1         1
*ICFD_PART_TITLE
housing
$#     pid     secid       mid
         3         1         1
*ICFD_PART_TITLE
sliding_out
$#     pid     secid       mid
         4         1         1
*ICFD_PART_TITLE
sliding_in
$#     pid     secid       mid
         5         1         1
*ICFD_PART_VOL_title
fluid_volume_out
$#     pid     secid       mid
        15         1         1
5,6
*ICFD_PART_VOL_TITLE
fluid_volume_in
$#     pid     secid       mid
        16         1         1
1,2,3,4
*ICFD_SECTION
$#     sid
         1
$-----------------------------Output--------------------------------------------
*ICFD_CONTROL_TAVERAGE
$#      dt
  0.017143
*ICFD_DATABASE_FLUX
         1
*ICFD_DATABASE_FLUX
         2
*ICFD_DATABASE_DRAG
         6
*DATABASE_BINARY_D3PLOT
$#      dt      lcdt      beam     npltc    psetid
  0.017143
$#   ioopt
         0
$-----------------------------MESH----------------------------------------------
*MESH_VOLUME
$#   volid
        15
$#    pid1      pid2      pid3      pid4      pid5      pid6      pid7      pid8
5,6
*MESH_VOLUME
$#   volid
        16
$#    pid1      pid2      pid3      pid4      pid5      pid6      pid7      pid8
1,2,3,4
*MESH_BL
$#     pid     nelth      blth      blfe      blst
         3         4
*MESH_BL
$#     pid     nelth
         6         4
*MESH_SIZE_SHAPE
$#   sname
       box
$#   msize     pminx     pminy     pminz     pmaxx     pmaxy     pmaxz
   0.00035       0.0     -0.03     0.004     0.024    -0.026     0.009
$ ----------------- Define Curves ----------------------------------------------
*DEFINE_CURVE
$#    lcid      sidr       sfa       sfo      offa      offo    dattyp     lcint
         1         0       1.0       1.0       0.0       0.0         0         0
$#                a1                  o1
                 0.0                 1.0
             10000.0                 1.0
*DEFINE_CURVE
$#    lcid      sidr       sfa       sfo      offa      offo    dattyp     lcint
         2         0       1.0       1.0       0.0       0.0         0         0
$#                a1                  o1
                 0.0                 0.0
             10000.0                 0.0
*DEFINE_CURVE
$#    lcid      sidr       sfa       sfo      offa      offo    dattyp     lcint
         3         0       1.0   &turb_I       0.0       0.0         0         0
$#                a1                  o1
                 0.0                 1.0
             10000.0                 1.0
*DEFINE_FUNCTION
20,x-velo
f(y,z)=-4.1977e14*(y**2+(z-0.294)**2)**3+5.5e12*sqrt(y**2+(z-0.294)**2)**5
-2.65e10*(y**2+(z-0.294)**2)**2+5.64e7*sqrt(y**2+(z-0.294)**2)**3
-5.86e4*(y**2+(z-0.294)**2)+2.365*sqrt(y**2+(z-0.294)**2)+1.157
*DEFINE_CURVE_TITLE
Rotation velocity
$#    lcid      sidr       sfa       sfo      offa      offo    dattyp
       100                        &omega
$#                a1                  o1
                 0.0                 0.0
           0.0857125                 1.0
             10000.0                 1.0
*END

Figures


Download

Description



A key step in the development of medical devices is the testing phase. Regulatory agencies like the Food and Drug Administration require extensive laboratory testing and a long, tedious and expensive clinical trial process before a device is approved for clinical use. In an effort to optimize this process, the industry and the regulatory agencies are looking at numerical methods as an additional tool that could potentially reduce the time of product development, animal testing and cost.

The first critical step is to increase the confidence, reliability and robustness of numerical techniques. The FDA is actively working on this subject by designing laboratory experiments that could be used to evaluate the solution accuracy provided by computational methods launching the Critical Path Initiative (CPI) [1] program. The aim of the program is to standardize the use of computational simulation on the design of the blood-contacting medical devices and analysis of the ratio of hemolysis in them. The goal of this project is to establish the guidelines for applying Computational Fluid Dynamics (CFD) techniques on the evaluation and the optimization of the medical devices.

Among the benchmark proposed ([2]) is the analysis of the flow in a simplified centrifugal blood pump which has been the subject of investigations using the ICFD solver in Huang [3].

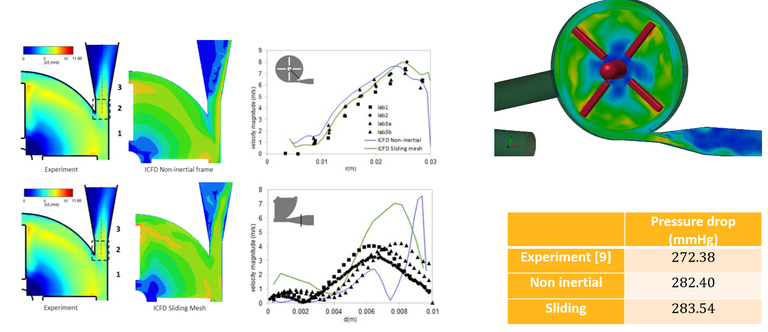

The flow enters the chamber through a curved tube with diameter 12 mm. The diameter of the inner chamber of the housing is 60 mm and the thickness is 9 mm. The rotor inside the chamber has a diameter of 52 mm and 4 mm thick, along with four 3 mm thick straight blades. The chamber is connected with a throat at its outlet, followed by a diffuser to the outlet tube with diameter 12 mm. The flowrate is Q = 6 L/min and the rotational speed 3500 RPM.

[1] FDA Critical Path Initiative (CPI), 2016. https://www.fda.gov/scienceresearch/specialtopics/criticalpathinitiative/default.htm

[2] FDAs \Critical Path” Computational Fluid Dynamics (CFD)/Blood Damage Project: Computational Round Robin problems, 2004. https://nciphub.org/wiki/FDA CFD

[3] Huang, CJ (2019). “On the performance and accuracy of PFEM-2 in the solution of biomedical benchmarks”. Computational Particle Mechanics volume 7, pages121–138(2020).
