- Figure 1 – SelPar Interface
Purpose:
This interface is used to select which parts to display.
This interface main purpose is to enable user to turn part on/off. It provides two levels:
- 1. All part of type beam, shell, solid etc…
- 2. Individually from the list or by picking a part to turn off from graphics window.
The list also provided typical extended selection methods. Group of parts can be saved and retrieved from buffers. Up to 10 buffers are available for use.
Controls:
- Model selection drop down menu: For use when multiple models are loaded (Md1/Md2/Md3/etc…)
Beam – Select/deselect Beam elements
Shell – Select/deselect Shell elements- Solid – Select/deselect Solid elements
- Tshell – Select/deselect Tshell elements
- Mass – Select/deselect Mass elements
- Discrete – Select/deselect Discrete elements
- Seatbelt – Select/deselect Seatbelt elements
- Inertia – Select/deselect Inertia elements
- Rsurf – Select/deselect Rigid-surface elements
- SPHnd – Select/deselect SPH nodes elements
- Fluid – Select/deselect Fluid elements
Single – Remove/Keep parts using single pick
Area – Remove/Keep parts inside a user defined area- Polygon – Remove/Keep parts inside a user defined region
Save current active parts to selected buffer
Load parts from selected buffer
- Part list
- Buff(n): Select part buffer to save/load
- Selected – List displayed parts only
Show PART Info for selected parts (Fig 2)

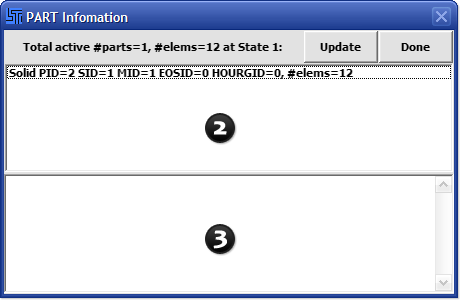

- Figure 2 – Part INFO Interface
Update part information dialog
Exit part information dialog
- Info dialog part list
- *PART information for selected parts
- Rm – Remove parts inside the area/polygon
- Kp – Keep parts inside the area/polygon
Sort parts by prop/elform (Fig 3)

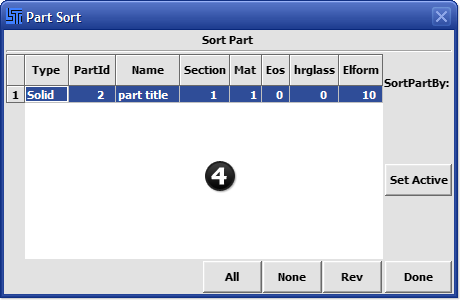

- Figure 3 – SortBy Interface
- Sort dialog part list
Set selected parts to active
Select all parts
Deselect all parts
Reverse selection
Exit part sort dialog
Select all parts
Deselect all parts
Reverse part selection
Update w/ selection automatically (Red=on)
Update w/ selected parts (when Auto=off)
Exit Part Selection interface
