Page 1: Range

Home » Knowledge Base » LS-Prepost » Pages » Page1 » Page 1: Range

  • range panel
  • Figure 1 – Range Interface


Use this interface to set fringe and Iso-surface ranges.


  • rbs Dynamic – A set of min/max ranges is computed for each time state
  • rb Static – A constant min/max range is computed using all time states
  • rb User – Range set by user, enter min/max values below
  • rb Show – Show elements within the range entered below
  • rb Entire Model – Range computed for entire model
  • rbs Active Part only – Range computed for active parts only
  • rb Active Elements only – Range computed for active elements only

 Assign current range to user min/max

  • Avg: Element to node averaging scheme
  • None – Fringe with element values
  • Nodal – Fringe with nodal values
  • MinMax – Fringe with average (mean) of Min and Max element values attached to a node. This shows gradients better than with pure averaging (which tends to smooth the gradient).

 Unblank elements that are blanked out of range

  • cbc Palette – Reverse the fringe color palette
  • cb Blank range – Blank all elements with values outside the user defined range
  • cb Show active min/max – Show min and max values for region – use Zin to define
  • cb Ident Min – Identify first N minimum values
  • cb Max – Identify first N maximum values
  • No. min/max entities: Enter number of min/max values to be identified (N)
  • cbc Lower – Set Limit fringe color map to lower user range
  • cb Upper – set limit fringe color map to upper user range
  • cb Set Iso Range – Set Isosurface range values independently
  • Level: Select or enter number of color in the fringe palette

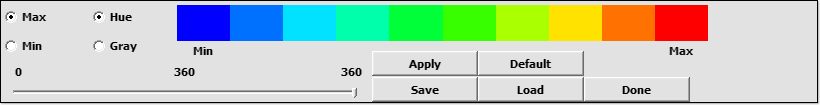

 Open fringe color palette

  • rbs Max – Set fringe color for maximum of range
  • rb Min – Set fringe color for minimum of range
  • rb Hue – Use slider bar to set Hue color value
  • rb Gray – Use slider bar to set Gray shade value


 Apply current palette to the fringe plot


 Reset fringe palette to default values


 Save fringe color palette to a file


 Load fringe color palette from a file


 Exit the Fringe Color Palette


 Update range settings


 Exit Set Fringe Range interface
