Mini Tutorial | Page 7: SurMesh

  • fig1

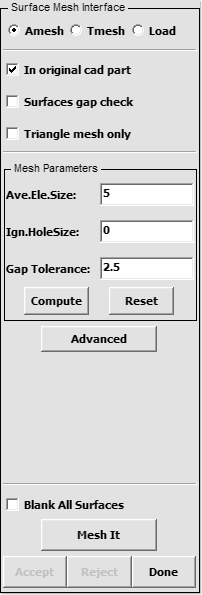

  • Figure 1
  • Mesh some IGES surfaces
  • 1. download and unzip the IGES file surfaces.igs
  • 2. in LS-PrePost, load the IGES data using File → Import → IGES File
  • 3. go to Page 7: SurMesh (see Figure 1)
  • 4. enter Ave.Ele.Size=5
  • 5. click All Vis in the lower panel (Gen Select panel)
  • 6. click Mesh It
  • 7. click Accept
  • 8. click Bcolr render button
  • 9. click Mesh render button (see Figure 2)

  • fig2
  • Figure 2
