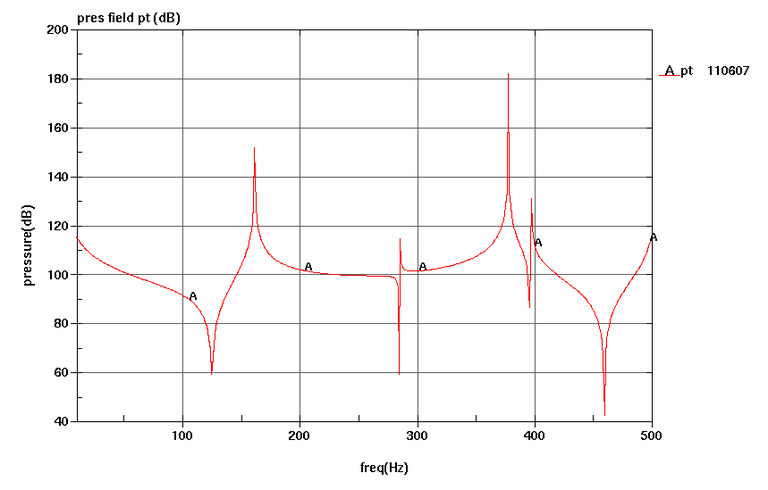

This is an example of a simplified compartment model with hexaeder elements and velocity boundary conditions. It is shown how to set up a model for frequency domain FEM acoustics with *FREQUENCY_DOMAIN_ACOUSTIC_FEM and how to post-process with *DATABASE_FREQUENCY_BINARY_D3ACS. Results can be compared with the example ”BEM acoustics of a simplified compartment model”. Example 9.1 from LS-Dyna training class NVH, Fatigue and Frequency Domain Analysis with LS-DYNA by Yun Huang.
Keywords
*CONTROL_TERMINATION
*CONTROL_TIMESTEP
*DATABASE_BINARY_D3DUMP
*DATABASE_BINARY_D3PLOT
*DATABASE_BINARY_D3THDT
*DATABASE_BINARY_RUNRSF
*DATABASE_FREQUENCY_BINARY_D3ACS
*DEFINE_CURVE
*ELEMENT_SHELL
*ELEMENT_SOLID
*END
*FREQUENCY_DOMAIN_ACOUSTIC_FEM
*KEYWORD
*MAT_ELASTIC_FLUID
*MAT_RIGID
*NODE
*PART
*SECTION_SHELL
*SECTION_SOLID
*SET_NODE_LIST
*SET_SEGMENT
*TITLE
*KEYWORD
*TITLE
Acoustic analysis of a simplified compartment model by FEM
*FREQUENCY_DOMAIN_ACOUSTIC_FEM
1.2300E-12 340000. 10. 500. 491 2.e-11
3 0
1 2 11 5 3 2 1.
200 1
*DATABASE_FREQUENCY_BINARY_D3ACS
1
*CONTROL_TERMINATION
0.187970 0 0.000 0.000 50.000000
*CONTROL_TIMESTEP
0.000 0.800000
0.000 0 0
*DATABASE_BINARY_D3DUMP
10000.000
*DATABASE_BINARY_D3PLOT
0.001000
0
*DATABASE_BINARY_D3THDT
5.0000E-4
*DATABASE_BINARY_RUNRSF
5000.0000
*PART
body = Al 3mm thick
1 1 1
*SECTION_SHELL
1 2
3.000000 3.000000 3.000000 3.000000
*MAT_RIGID
1 2.7000E-9 72000.000 0.300000 0.000 0.000 0.000
1.000000 7 7
0.000 0.000 0.000 0.000 0.000 0.000
*PART
acoustic medium
3 3 3
*SECTION_SOLID
3 2
*MAT_ELASTIC_FLUID
3 1.220000 0.000 0.000 0.000 0.000 141.03000
0.000 0.000
*ELEMENT_SOLID
*NODE
*SET_NODE_LIST
200 0.000 0.000 0.000 0.000
110607
*DEFINE_CURVE
2 0 0.000 0.000 0.000 0.000 0
0.000 0.000
1000.0000000 0.000
*DEFINE_CURVE
3 0 0.000 0.000 0.000 0.000 0
0.000 7.0000000
1000.0000000 7.0000000
*SET_SEGMENT
*END
*ELEMENT_SHELL
