Page 2: Detach (Detach Elements)

Home » Knowledge Base » LS-Prepost » Pages » Page2 » Page 2: Detach (Detach Elements)

  • detach panel

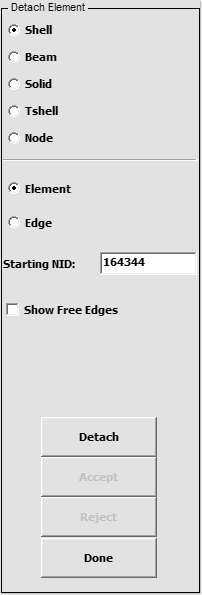

  • Figure 1 – Detach Interface

Purpose:

This interface can be used to detach (disjoint) elements as well as break connectivity at individual nodes. Using the General Selection Interface elements can be picked for detachment with great flexibility.

Controls:

  • rbs Shell – To separate shell elements
  • rb Beam – To separate beam elements
  • rb Solid – To separate solid elements
  • rb Tshell – To separate tshell elements
  • rb Node – To separate all elements at a node

  • rbs Element – Select group of elements to be detached
  • rb Edge – Select edges of elements to be detached

  • Starting NID: Enter starting node ID
  • cbc Show Free edges – Find and Show free edges

Detach

 Detach the selected data

Accept

 Accept the detach operation

Reject

 Reject the detach operation

Done

 Done detach interface
