- Figure 1 – ASCII Interface
Purpose:
This interface is used to browse and plot time history data contained in various ASCII databases written by LS-DYNA like nodout, secforc etc…
There are approximately 30 different files that can be processed through this interface. Similar time history data output by LS-DYNA version 970 and beyond in binary files called binout can be processed using the Binout Interface on page 2.
Controls:
- ASCII Key: (*)=exist, (+)=loaded
- ASCII File Selection List
- ID Selection List
- Component Selection List
Load an ASCII file from an alternative directory
Load existing file for selected ASCII file type
Unload selected ASCII file (to free memory)
Raise all open XY-Plot windows
Open and Raise all closed XY-Plot windows
Exit ASCII interface
Plot items from ASCII file in current XY-Plot window
Plot items from ASCII file in a new XY-Plot window
Add items from ASCII file to current XY-Plot window
Select all ASCII items
Clear all selections
Reverse selection
Show information on the loaded ASCII file
- NODOUT Options
Open HIC/CSI options interface (see below)
- MATSUM Options
Toggle the combining of multiple ASCII items
- RBDOUT Options
Plot curve in local coordinate system
- ELOUT Options
Clear Elout component list
- SPCFORC Options
Select forces for plotting
Select moment for plotting
- JNTFORC Options
Select joint forces for plotting
Select rotational joint stiffness for plotting
Select translational joint stiffness for plotting
- NODFORC Options
Select group in nodfor file
- TRHIST Options
Show selected tracer on the model
- RBDOUT Options
Plot curve in local coordinate system
Head Injury Criteria/Chest Severity Index (HIC/CSI) Bottom Panel:

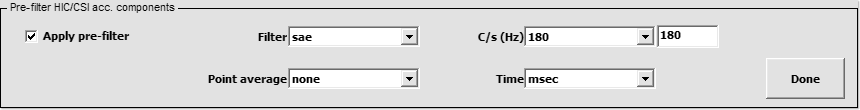

- Figure 2 – HicCsi Bottom Panel
Apply pre-filter – Filter acceleration components prior to HIC/CSI calculation
- Filter: Select filter type to apply
- Point average: Select number of points to average
- C/s (Hz): Select/Enter filtering frequency in model time units
- Time: Select model time units for HIC/CSI filter
Close HIC/CSI pre-filter panel
