  • 8. Create Thick fold definitions #3 and #4
  • select Fold Type: Thick fold

  • N1=22, N2=23, Active=24
  • click Apply

  • N1=28, N2=29, Active=30
  • click Apply (see Figure 12)

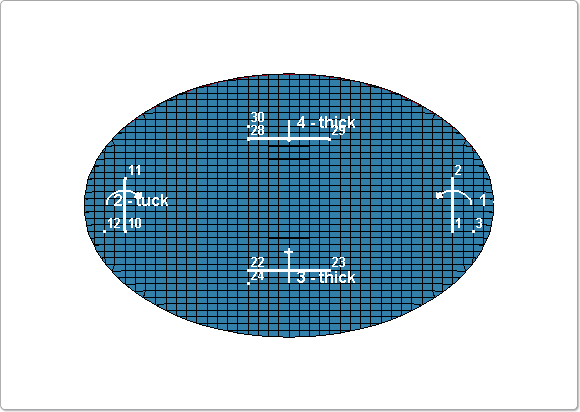

  • fig12
  • Figure 12
