  • 4. Rotate dummy to face forward
  • select rbs Rotate in side panel (see Figure 7)
  • select rbs Local in bottom panel (see Figure 8)
  • select rbs Z Axis
  • enter Rot. Ang.=180, press Enter on keyboard
  • click “+” (see Figure 9)

  • fig9

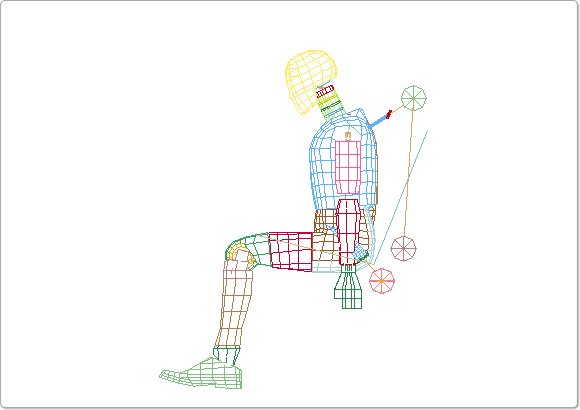

  • Figure 9


  • fig7
  • Figure 7
  •
  • fig8
  • Figure 8
