  • 3. Create mesh for blank

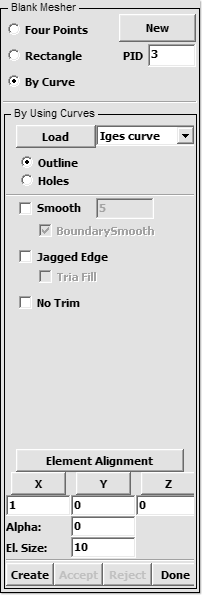

  • go to Page 7: BMesh (see Figure 4)

  • select rbs By Curve
  • pick the blank outline in the graphics window
  • click Create
  • click Accept
  • click Mesh render button 2 times (see Figure 5)

  • fig5
  • Figure 5

  • fig4
  • Figure 4
