  • 8. Generate solid elements by shell drag (continued…)
  • click Direction in the ElGen Interface to launch the Create Direction Dialog
  • select rbs 2Nodes in the Create Direction Dialog (see Figure 13)

  • fig13
  • Figure 13

  • click node ID 223 in the graphics window (see Figure 14)
  • click node ID 94 in the graphics window
  • click Done in the Create Direction Dialog
  • continued on next page…

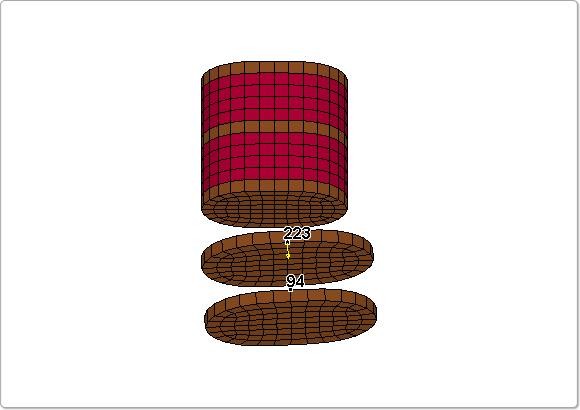

  • fig14
  • Figure 14
