  • 6. Convert the model for implicit analysis
  • create a directory called “implicit”
  • copy “\eigenvalue\bracket_eigenvalue.k” to “\implicit\bracket_implicit.k”

  • launch LS-PrePost

  • File → Open → LS-Dyna Keyword
  • open “bracket_implicit.k”

  • to to Page 3: *Control
  • click All
  • select “[*]IMPLICIT_EIGENVALUE (1)” from the list
  • click Edit

  • click Delete in the KEYWORD INPUT popup form

  • select “[*]IMPLICIT_GENERAL (1)” from the list (see Figure 10)
  • click Edit

  • enter DT0=0.001 in the KEYWORD INPUT popup form
  • click Accept (see Figure 11)
  • click Done
  • continued on next page…

  • fig11
  • Figure 11

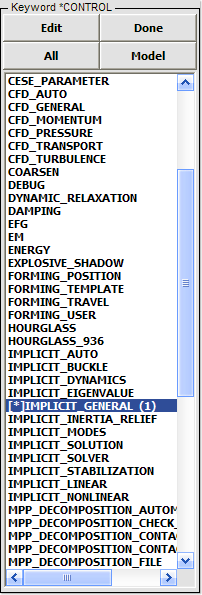

  • fig10
  • Figure 10
