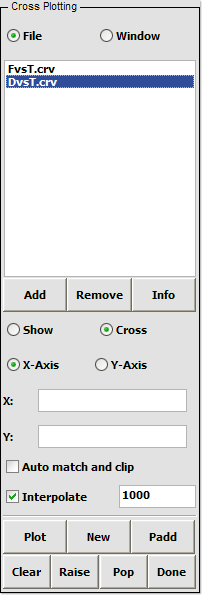

  • fig9
  • Figure 9
  • 7. Define X-Axis for cross plot
  • go to Page 1: Xyplot (FvsT.crv and DvsT.crv should already be visible in list)
  • select rbs Cross

  • select “DvsT.crv” in the side panel list (see Figure 9)
  • select “DvsT.crv:iny-1000(np=121)” in the bottom panel list (not shown)

  • note: at this point selection automatically changes from rb X-Axis to rbs Y-Axis
