  • 5. Replace nodes
  • go to Page 2: ElEdit
  • select rbs Replace in the Element Edit Interface (see Figure 9)

  • click on node 236 in the graphics window
  • click on node 248

  • click on node 237
  • click on node 249

  • click on node 238
  • click on node 247

  • click Accept in the lower panel (see Figure 10)

  • fig10
  • Figure 10

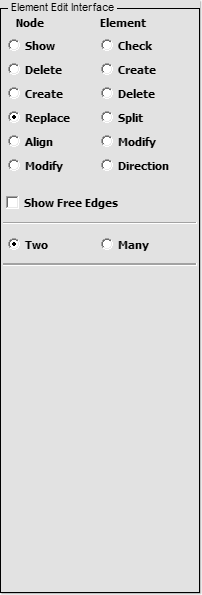

  • fig9
  • Figure 9
