- Figure 7
- 4. Define section properties
- go to page 3: *Section (see Figure 7)
- a. define section property for the ball
- select SOLID from the list
- click Edit
- click NewID in the KEYWORD INPUT popup form (see Figure 8)
- enter TITLE: rigid section
- click Accept
- click Done
- b. define section property for the plate
- select SHELL from the list
- click Edit
- click NewID in the KEYWORD INPUT popup form
- enter TITLE: plate section
- enter NIP=5
- enter T1=1 and hit Return (assigns T2,T3,T4=T1)
- click Accept
- click Done

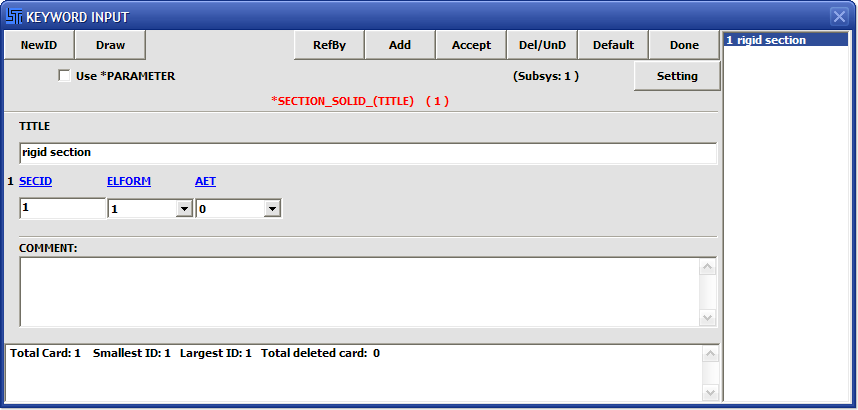

- Figure 8
